The operator side of the HV is perfectly linear and ac­cessible, allowing carton magazine loading to be car­ried-out with convenience and with large carton stor­age capacity. This feature also gives the operator full vision and total control of all the functions carried-out on the machine.

The cantilever structure, separating the mechanical transmission from the product/carton handling areas, guarantees total accessibility for machine inspection purposes and immediate elimination of product/pack­aging material residue, in compliance with GMP norms.

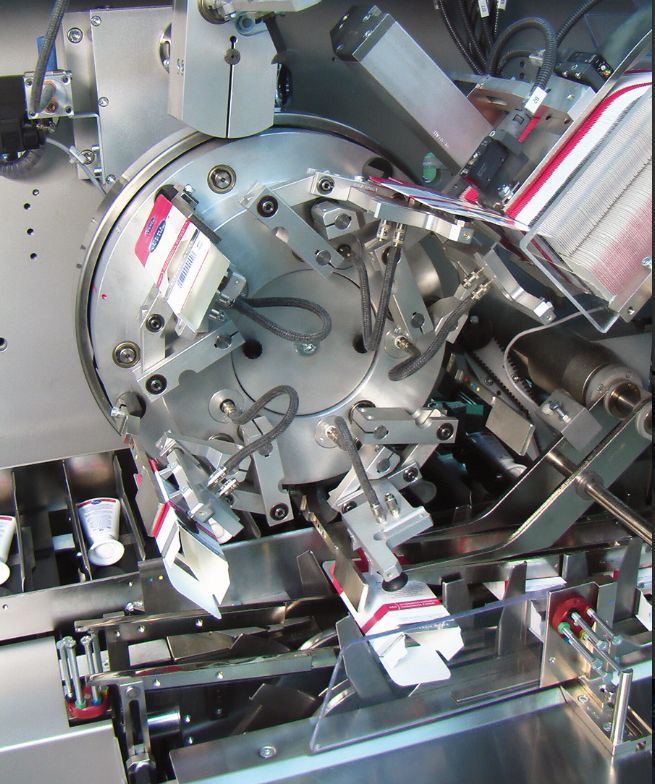

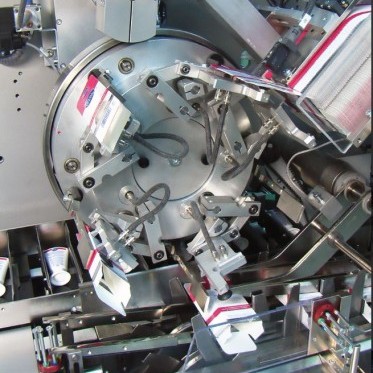

The exclusive carton erection system incorporating a continuous motion 5-station turret, each station sepa­rately driven by closed-profile cams for carton pick-off at zero speed, allows for total and progressive carton pre-breaking to be carried-out in a time period longer than the machine cycle.

Each carton erection station is composed of two suc­tion-cup arms which, by pulling externally on the two adjacent faces of the carton, guarantee positive open­ing, whatever board grammage is used and even in the case of handling square-section formats.

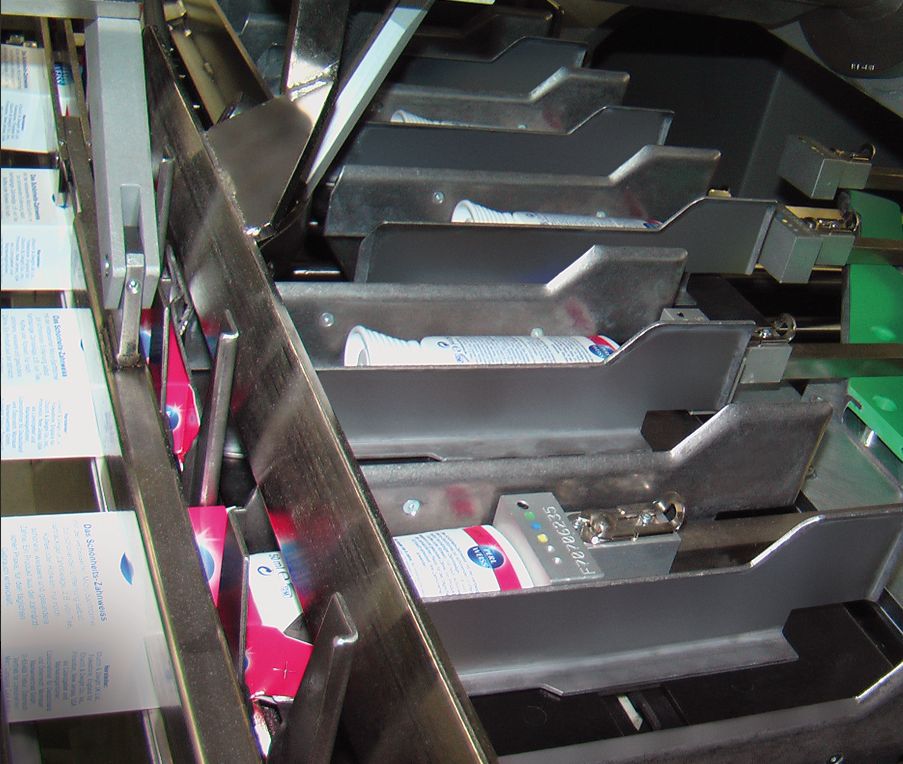

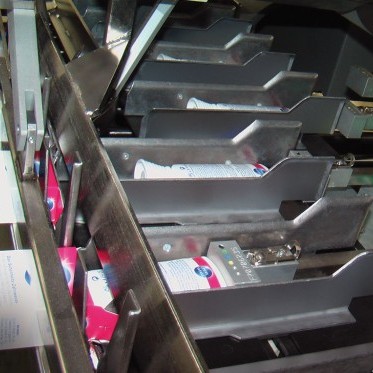

The product transport buckets, moving following a cam profile are inserted into the cartons, allowing perfect in­troduction even when handling products with irregular shape/dimensions.

The possibility to adopt pusher upper blades with dif­ferentiated stroke, enables perfect introduction of leaf­lets/booklets and other similar items into the carton, independently from the characteristics of the product to be handled.

The wide range of product feeders available covers all possible packaging requirements of the Pharmaceuti­cal, Cosmetic and Food Industries.

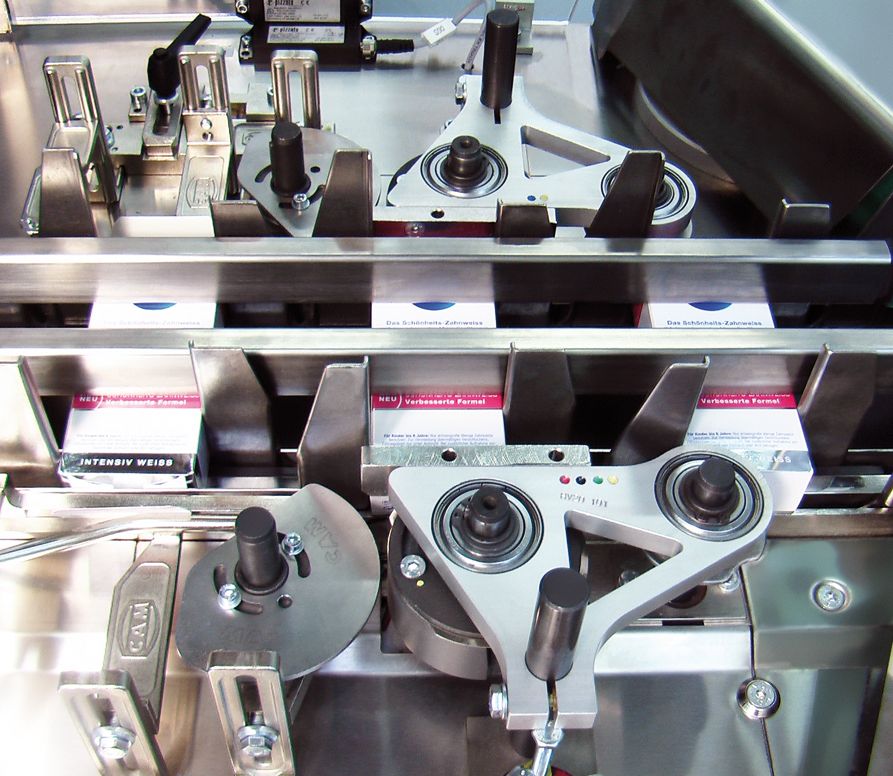

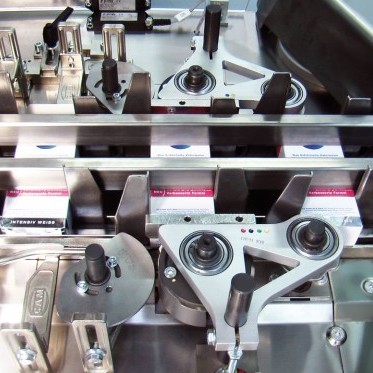

CAM has recently developed and patented a new car­ton closure system, that grants the possibility of: car­rying out format change without requiring the services of a specialized technician; eliminating fine tuning time related to the closure area; and absolute quality con­sistency of the final package.

HV can be provided with HYDRA, the system that guarantees flawless process handling, even if a single function module element is out of service.

As on all CAM machinery, the HV is also equipped with the Mechanical Memory® system, transform­ing complete size change-over into a series of rapid and pre-set operations, which can be carried-out by unskilled personnel in less than 10 minutes, eliminat­ing the need for fine-tuning adjustments and allowing size change-over to coincide with actual production change-over.
